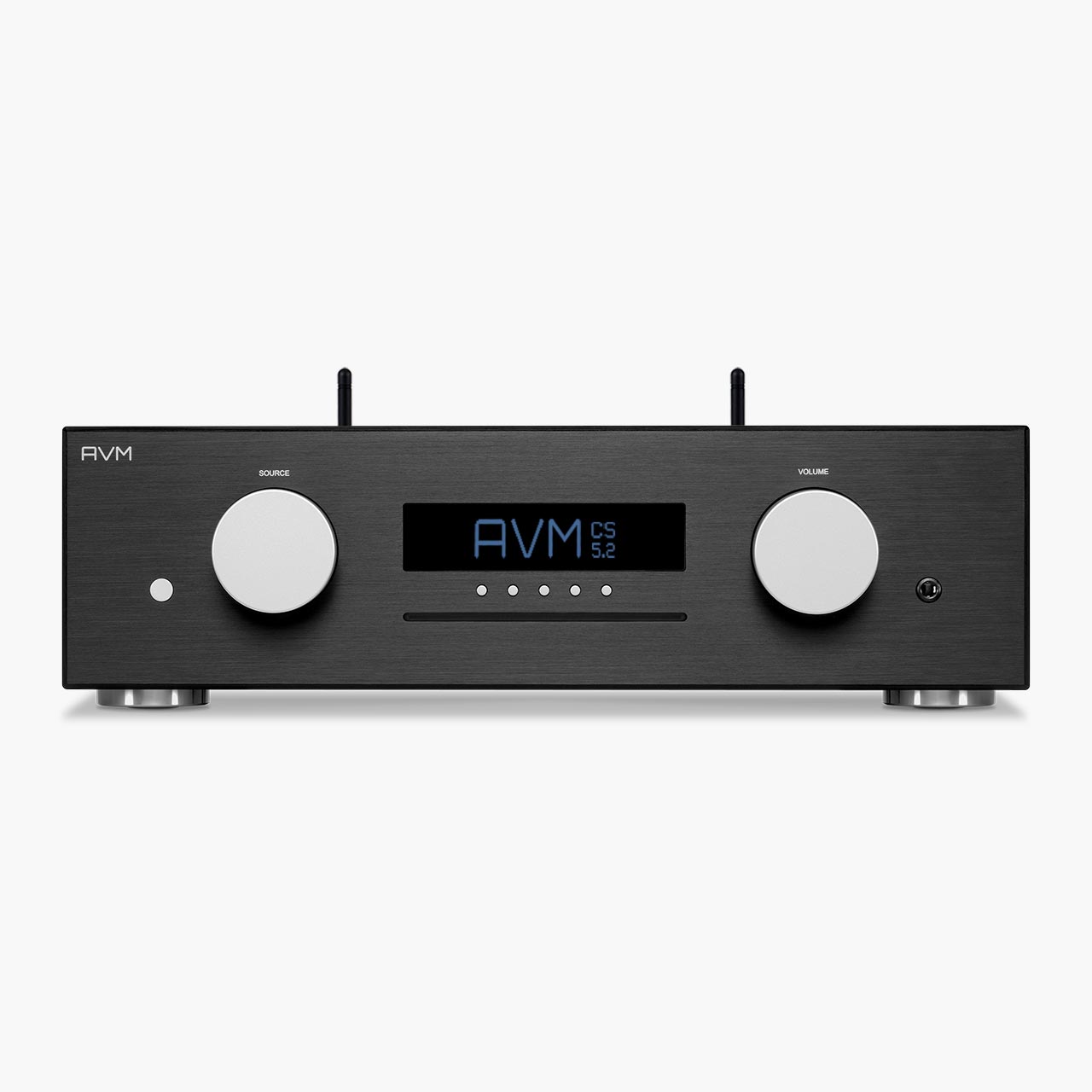

Streaming CD Receiver

EVOLUTION CS 5.2 COMPACT STREAMING CD RECEIVER WITH 2 X 330 W Our most compact music system in the EVOLUTION line is our CS 5.2. It offers the large power of more than 330 Watts per channel.


The CS 5.2 at a glance

The CS 5.2 offers a large variety of connectivity and control functions. Every well-known format is supported when music is streamed from different sources. Furthermore, the CS 5.2 offers a variety of digital inputs like synchronous USB input and SPDIF in and outputs. A NAS or external drive are supported as well as a USB jump drive (stick). An excellent phono stage is included too as well as 3 line inputs. The firmware of the streaming client is updateable and upgradeable, making the CS 5.2 future proof.

This way possible future formats may be implemented as well. With it’s 330 Watt/ch strong amplifier, the CS 5.2 easily handles all speakers in the market. Cutting edge technologies are applied when it comes to digital signal processing with all digital signals being upsampled to 192kHz/ 24bit and a dual DAC converting to analog signal from this format. All this ensures a perfect music reproduction from every applicable source. Special focus was put on achieving the most authentic reproduction from CD. The acoustically shielded Pure CD drive is spring-mounted end effectively protected from vibrations and footfall. Like all AVM hi-fi components, the CS 5.2 is carefully developed and assembled by our engineers in Malsch, Germany. Our vendors for housing and electronic parts reside all near-by. This proximity helps us to easily ensure and maintain a superb quality level of the supplied parts for the AVM hi-fi components made of these.


Analog Inputs - 2 x RCA
Phono Input - MM / MC
CD Drive - TEAC Pure CD Drive
Bluetooth - HiFi Bluetooth (4.2 Standard)
Music Streaming - QOBUZ (CD Quality), TIDAL (CD Quality)
Digital Inputs - 1 x S/PDIF Coax, 1 x S/PDIF Optical, 1 x USB A (Stick/HDD)
Radio - FM RDS Tuner, Webradio via Airable Internet Radio Station Database (automatic updates)
Analog Outputs - 1 x Line/Fix Out RCA, 1 x Pre/Var Out RCA
Digital Outputs - 1 x S/PDIF Coax, 1 x S/PDIF Optical
Output Power - 2 x 330 W [4Ω]
Headphone Output - 6,35 mm
Speaker Outputs - 2 Pair
Network - LAN, UPnP, WiFi
Optional Remote Controls - RC 9, RC S App for iOS & Android
Tone Control - Balance, Bass, Treble, Contour (Loudness)
Finish - Aluminium Silver, Aluminium Black
Product Dimensions - 370 x 430 x 130 mm (L x W x H)
Product Weight - 12 kg
Product Line - Evolution
